Ulma Line Drainage

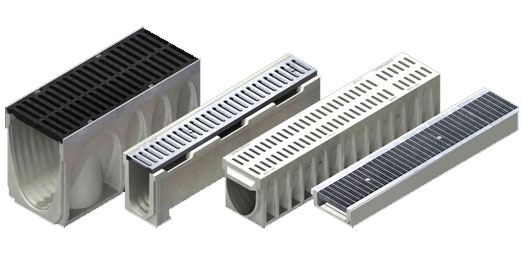

ULMA Line Drainage Pre-fabricated Systems
Manufactured using polymer concrete, ULMA Line Drainage Channels are designed to the highest specifications and tailored to a myriad of scenarios.
Key Features
-
A full range of lids in stock to suit urban, industrial and residential settings
-
Differing designs and load bearing capacities.
-
Accommodates continuous and cascaded slope formats and all accessories are provided as part of the overall system.
Our main systems are:
1. Multi-V: Optimized V-shaped section with self-cleaning effect, suitable for intermediate loads and road traffic for areas of low and medium hydraulic requirements.
Killeshal-Prefabricated_Drainage_System-MultiV
2. System Self: A multipurpose drain, it can be used in residential or heavy industrial settings.
Killeshal_Prefabricated_Drainage_System_ULMA_SystemSELF
3. System Mini: Suitable for use in areas of limited construction depth, with charges of up to 90m. With a special reinforced lockable grating, it is suitably capable of bearing high axial charges – in areasof heavy traffic, industrial plants, petrol stations etc.
Killeshal_Prefabricated_Drainage_System_ULMA_SystemMINI
4. System Sport: Drainage channel specifically developed for sports grounds and associated infrastructure, such as shower rooms, indoor and outdoor pools, running tracks etc.
Killeshal_Prefabricated_Drainage_System_Ulma_SystemSPORT
5. System U: Drainage channel with continuous slope or with cascades. Apt for use in pedestrian or parking zones and in urban developments.
Killeshal_Prefabricated_Drainage_System_ULMA_SystemU
6. System U-K: Drainage channel with continuous slope or with cascades. Galvanised steel lining makes the system suitable for use in areas of heavy vehicle traffic. Lining in stainless steel is available by request.
Killeshal_Prefabricated_Drainage_System_ULMA_SystemUK
7. System F: Drainage channel with slope in cascades for charges of up to 90m. Special reinforced fixings make the system suitable for areas of heavy traffic – airports, ports, loading areas, petrol stations etc.
Killeshal_Prefabricated_Drainage_System_ULMA_SystemF
Additional ULMA System information PDFs:
We have a range of metal and environmental recycled plastic lids to suit all situations, details of which are available on technical data sheets. For further information or installation instructions, please download the product PDF or Installation Guide.
Class | Test Load | Zone Of Utilisation |
|---|---|---|
A 15 | 15kN | Pedestrian and Vehicular |
B 125 | 125kN | Pedestrian, Parking and Vehicular |
C 250 | 250kN | Kerbs and other street confinements |
D 400 | 400kN | Road Pavements & Parking Zones |
E 600 | 600kN | Heavy Vehicular Load – Airports, Ports etc |
F 900 | 900kN | Especially Heavy Vehicular Load – Airports, Ports etc |
