Masonry Support
Killeshal Masonry Support & Windposts
Masonry support is a stainless steel structural component that transfers vertical loads from the brickwork facade to the primary load-bearing frame. By accommodating differential movement between the facade and structural frame, it minimises stress concentrations and reduces the likelihood of cracking or displacement within the masonry
We supply a world class masonry support system that is both easy to install and are reliable.
These systems save you time and money because:
-
It has industry leading adjustability – this mitigates for on-site conditions in the most cost effective way possible.
-
It has the strongest angle section on the market – this means that compared to our next best competitor, up to 25% fewer support brackets are required.
-
All configurations are available ex-stock – this makes it easier to specify and cheaper to source.
By combining our Titan masonry support system with bespoke steel components we produce single and double sided soffit systems which are ideal for runs of any length. This versatile approach can adapt to suit the particular building frame and in each case Titan offers a highly practical solution on site. Soffit solutions utilise BD13 bricks with a faced base.
Windposts

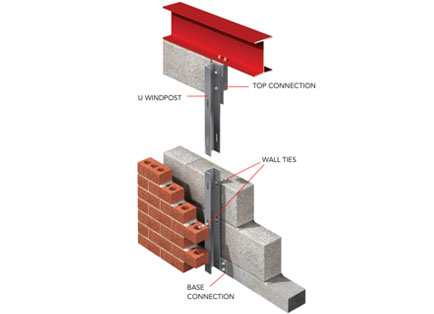

Our range of Masonry Support products is complimented by three types of windpost manufactured by Keystone. The U windpost is installed within the cavity and will normally span between floor structures, with the same principle applying to the DU Windpost. Both designs leave the inner leaf of the cavity wall undisturbed. The LP Windpost is designed to be built into the inner skin of the cavity wall and normally span between floor structures.
Material Specification
Keystone Windposts are manufactured from grade 304 stainless steel (grade 316 is available if required). The Keystone Technical Team will provide full product specification and schedules.
Connections and Wall Ties

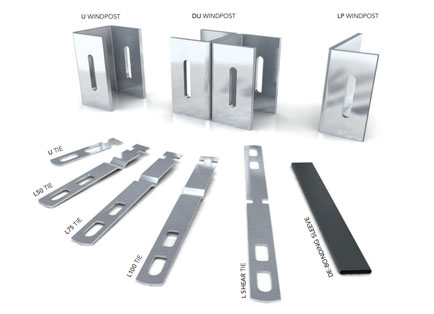

All Keystone Windposts are supplied with specifically designed base and upper connections and fixings. They are also supplied with a suitable number of wall-ties which will vary in relation to the post type used and the cavity width. There are five types:
Product Type | Usage |
|---|---|
U Tie | For use with U and DU Windposts |
L50 Tie | For Use With LP Windposts (50mm Cavity) |
L75 Tie | For Use With LP Windposts (75mm Cavity) |
L100 Tie | For Use With LP Windposts (100mm Cavity) |
L-Shear Tie | For Use With LP Windposts |
