Steel Lintels

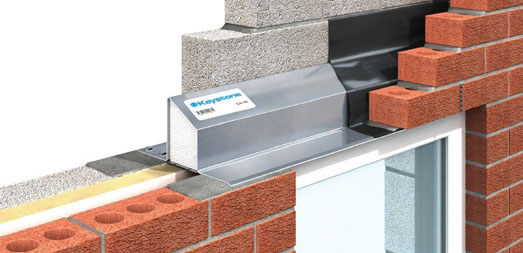

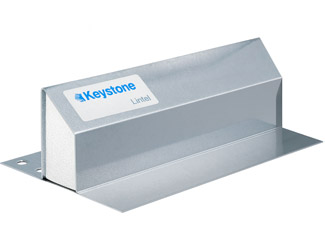

Steel Lintels by Keystone from Killeshal
A modern and comprehensive standard range of Keystone quality steel lintels has been developed over many years to fulfil your requirements. Our technical team at Killeshal have an excellent relationship with the keystone team, having already worked closely with Keystone to develop the the Masonry Support System.
The excellent technical team here at Killeshal will be happy to work with you to evaluate your requirements and provide you with a “best fit” solution.
Key Features
-
High grade pre-galvanised mild steel to BS EN 10346:2009 DX51D plus Z600 or grade Z275 to BS EN10025-2:2004 with minimised spangle finish and a minimum yield stress of 250N/mm².
-
Tested in accordance with BS 5977 Part 2 1983 and BS EN 845-2:2003.
-
Differential Total UDL kN 3:1 up to 75% loading on the inner leaf.
-
Differential Total UDL kN 19:1 up to 95% loading on the inner leaf.
-
Keystone lintels are insulated with expanded CFC free polystyrene and conform to BS 13163: 2008
Brick-Slip Feature Lintels
Specifically designed to make the imagined a reality in brick builds, the brick-slip feature steel lintels are a one piece prefabricated unit, manufactured to bespoke designs. They allow even the most challenging architectural designs to become achievable.
These units are produced using a consignment of the brick in use on the site, which is bonded to the galvanised and powder-coated structural steel elements in a patented system that ensures maximum performance of the units.
Padstones
Killeshal also manufacture a range of Pad-stones suitable for a wide range of lintels. Please contact us with your requirements for more details. See the Padstone range here.
